[ 11 ] - AWS EKS - Autoscaling

1.  EKS node viewer

yum install -y go
go install github.com/awslabs/eks-node-viewer/cmd/eks-node-viewer@v0.5.0
cd ~/go/bin
./eks-node-viewer



    ✅  최종 실행 화면







2.  개념

 ➜  파드에 대한 오토스케일링 기법 - HPA, VPA

 ➜  노드에 대한 오토스케일링 기법 - CA, karpenter



 ➜  스케일링의 판단기준이 되는 지표는 수집된 metric

    ✅  HPA(horizontal pod autoscaler) - 수평 스케일링 (수량을 확장, 축소 scale out/in)

    ✅  k8s의 pod 오토스케일링 기능으로 수평적 스케일링을 동적으로 수행



    ✅  VPA(vertical pod autoscler) - 수직 스케일링 (용량을 확장, 축소 scale up/down)

    ✅  k8s의 pod 오토스케일링 기능으로 수직적 스케일링을 동적으로 수행







3.  TEST

curl -s -O https://raw.githubusercontent.com/kubernetes/website/main/content/en/examples/application/php-apache.yaml

cat php-apache.yaml | yh

kubectl apply -f php-apache.yaml

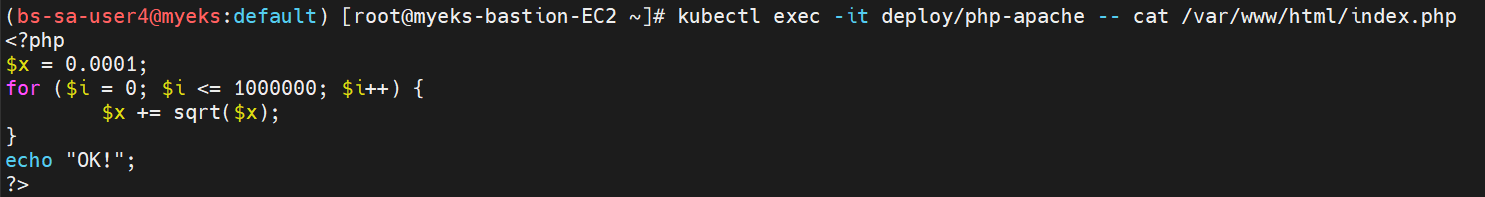

 ➜  kubectl exec -it deploy/php-apache -- cat /var/www/html/index.php

    ✅  실행 화면





 ➜  Watch mode 실행 (터미널 새로 open)

kubectl get hpa,pod
kubectl top pod
kubectl top node

watch -d ‘kubectl get hpa,pod;echo;kubectl get top pod ;echo;kubectl get top node’







 ➜  다른 터미널에 아래 명령어 입력

(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s 192.168.1.10;echo
OK!

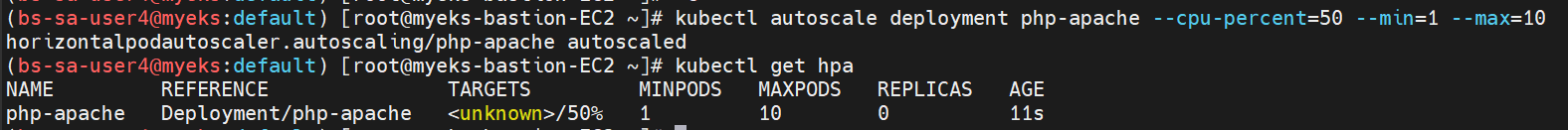

(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl autoscale deployment php-apache --cpu-percent=50 --min=1 --max=10
(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get hpa







 ➜  prometheus

    ✅  Kubernetes / Horizontal Pod Autoscaler ID : 17125



kubectl run -i \
    --tty load-generator \
    --rm --image=busybox \
    --restart=Never \
    -- /bin/sh -c "while sleep 0.01; do wget -q -O- http://php-apache; done"



    ✅  지우기 : kubectl delete deploy,svc,hpa,pod --all







4.  Vertical Pod Autoscaler를 사용하여 포드 리소스 조정

(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl create ns vpa
namespace/vpa created
(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# helm repo add fairwinds-stable https://charts.fairwinds.com/stable
"fairwinds-stable" has been added to your repositories
(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# helm install vpa fairwinds-stable/vpa --namespace vpa
NAME: vpa
LAST DEPLOYED: Fri Oct  4 04:46:03 2024
NAMESPACE: vpa
STATUS: deployed
REVISION: 1
NOTES:
Congratulations on installing the Vertical Pod Autoscaler!

Components Installed:
  - recommender
  - updater
  - admission-controller

To verify functionality, you can try running 'helm -n vpa test vpa'
(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "eks" chart repository
...Successfully got an update from the "fairwinds-stable" chart repository
...Successfully got an update from the "prometheus-community" chart repository
...Successfully got an update from the "geek-cookbook" chart repository
...Successfully got an update from the "stable" chart repository
...Successfully got an update from the "bitnami" chart repository
Update Complete. ⎈Happy Helming!⎈
(bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod -n vpa
NAME                                        READY   STATUS    RESTARTS   AGE
vpa-admission-controller-56484bb8cd-gl6fr   1/1     Running   0          20s
vpa-recommender-855ddb7454-cwpt9            1/1     Running   0          20s
vpa-updater-69878b9879-q6t8s                1/1     Running   0          20s





 ➜  nano hamster.yaml

apiVersion: "autoscaling.k8s.io/v1"
kind: VerticalPodAutoscaler # VPA
metadata:
  name: hamster-vpa
spec:

  targetRef:
    apiVersion: "apps/v1"
    kind: Deployment
    name: hamster
  resourcePolicy:
    containerPolicies:
      - containerName: '*'
        minAllowed:
          cpu: 100m
          memory: 50Mi
        maxAllowed:
          cpu: 1
          memory: 500Mi
        controlledResources: ["cpu", "memory"]
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hamster
spec:
  selector:
    matchLabels:
      app: hamster
  replicas: 2
  template:
    metadata:
      labels:
        app: hamster
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 65534 # nobody
      containers:
        - name: hamster
          image: registry.k8s.io/ubuntu-slim:0.1
          resources:
            requests:
              cpu: 100m
              memory: 50Mi
          command: ["/bin/sh"]
          args:
            - "-c"
            - "while true; do timeout 0.5s yes >/dev/null; sleep 0.5s; done"



    ✅  kubectl apply -f hamster.yaml





 ➜  새로운 터미널

[hamster apply 후]

kubectl get vpa

kubectl get vpa -w # hamster watch mode



kubectl get hpa,pod
kubectl top pod
kubectl top node

watch -d ‘kubectl get hpa,pod;echo;kubectl top pod ;echo;kubectl top node’



    ✅  실행 결과





 ➜  VPC 문제 파악

 kubectl get events --sort-by=".metadata.creationTimestamp" | grep VPA

   ✅  Kubernetes 클러스터에서 발생한 모든 이벤트를 시간 순서대로 정렬한 후, 그 중에서 VPA와 관련된 이벤트만을 추출하여 보여줌



 ➜  auto scaling

aws autoscaling \
  update-auto-scaling-group \
  --auto-scaling-group-name eks-ng1-aac92a7e-a0c4-e39b-99c2-b0ac410d0ac4  \
  --min-size 3 \
  --max-size 6 \
  --desired-capacity 3





 ➜  curl -s -O https://raw.githubusercontent.com/kubernetes/autoscaler/master/cluster-autoscaler/cloudprovider/aws/examples/cluster-autoscaler-autodiscover.yaml

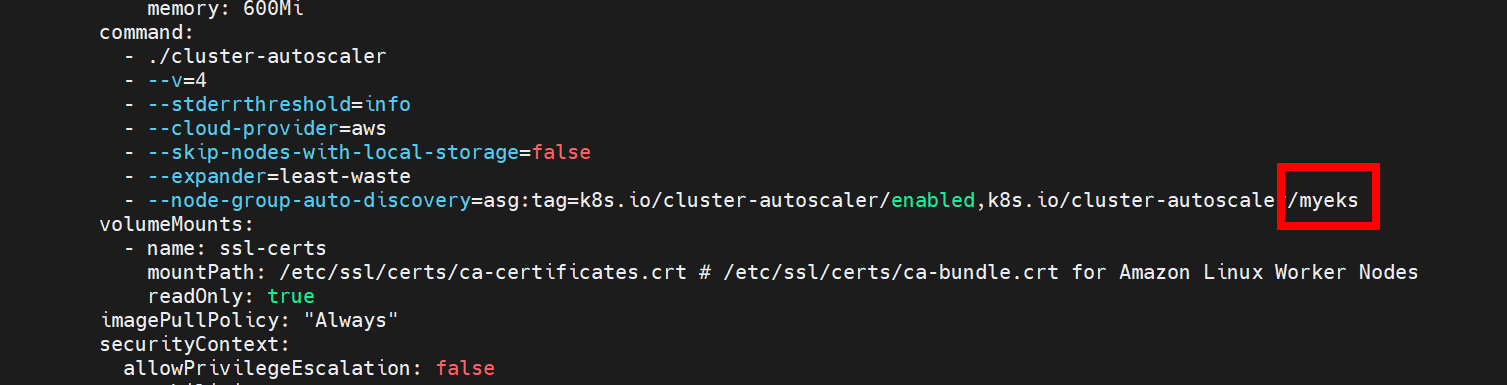

    ✅  cluster 이름만 myeks로 변경



 ➜  (bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f cluster-autoscaler-autodiscover.yaml



 ➜   (bs-sa-user4@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod -n kube-system | grep cluster-autoscaler





**T.S**

 ➜   cluster-autoscaler이 cashloofbackoff 된 상태





 ➜  nano nginx.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-to-scaleout
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx-to-scaleout
        image: nginx
        resources:
          limits:
            cpu: 500m
            memory: 512Mi
          requests:
            cpu: 500m
            memory: 512Mi



    ✅  kubectl apply -f nano.yaml





** 지우기 **

eksctl delete cluster --name $CLUSTER_NAME \ && aws cloudformation delete-stack --stack-name $CLUSTER_NAME



** 참고 **

https://docs.aws.amazon.com/ko_kr/eks/latest/userguide/vertical-pod-autoscaler.html

Vertical Pod Autoscaler를 사용하여 포드 리소스 조정 - Amazon EKS
